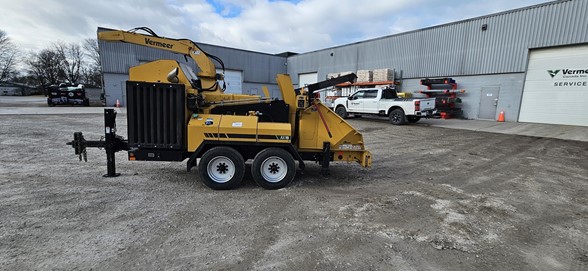

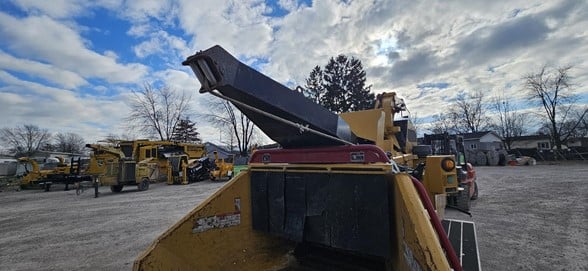

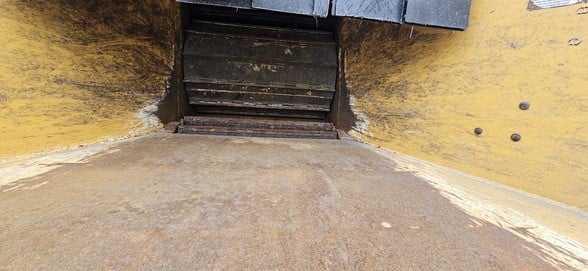

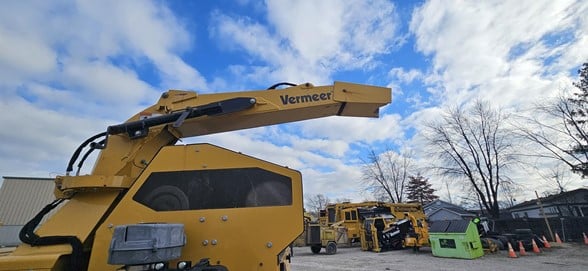

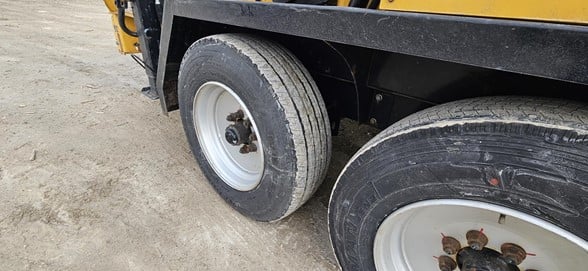

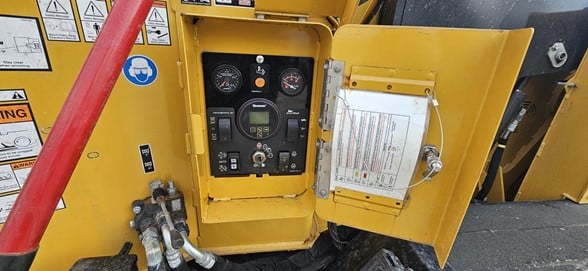

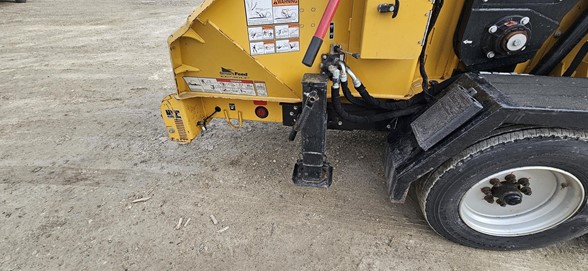

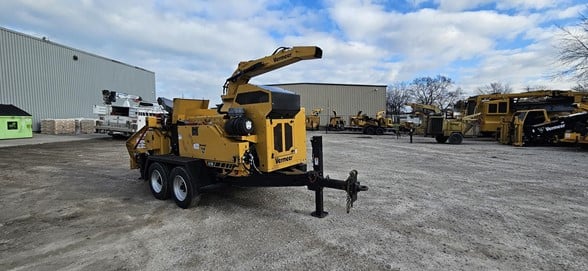

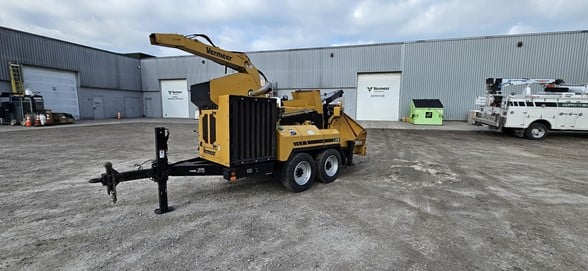

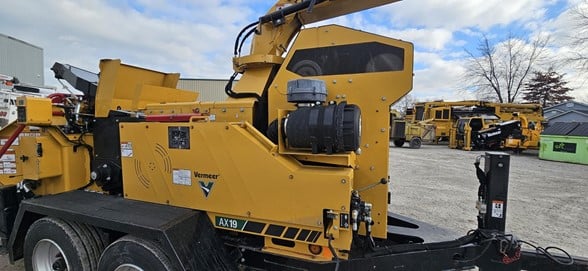

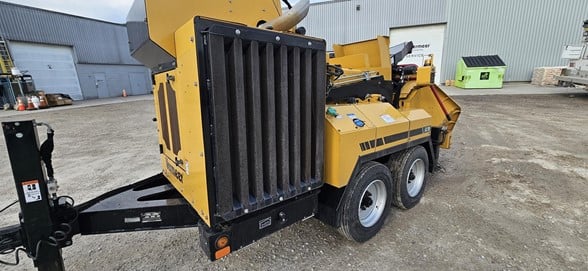

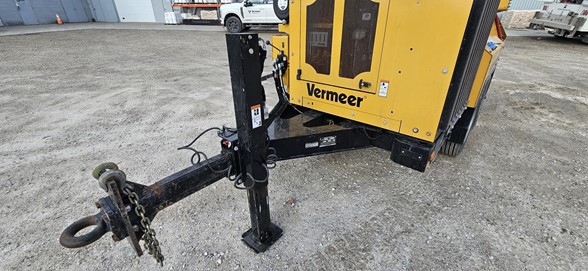

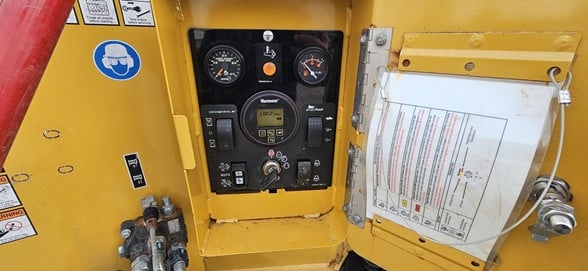

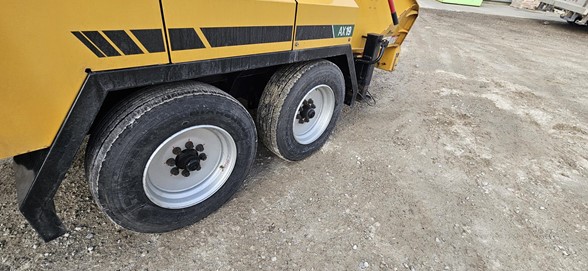

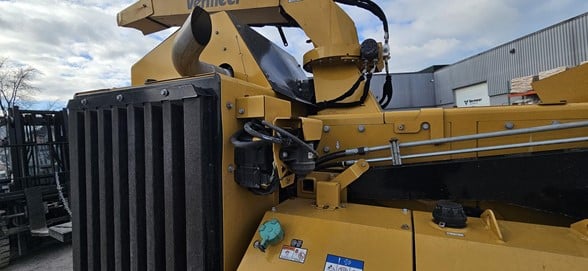

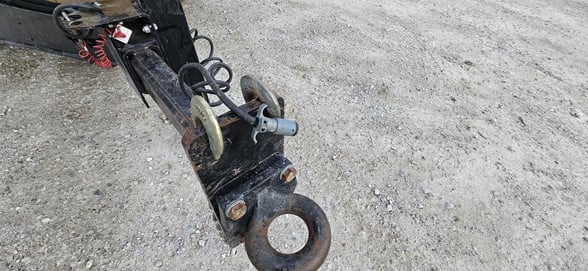

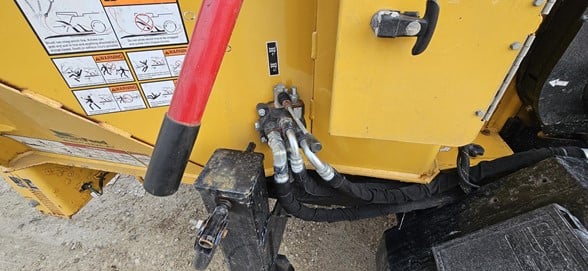

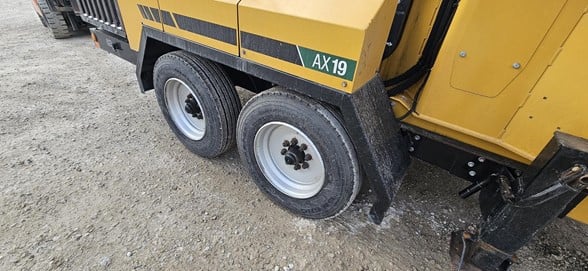

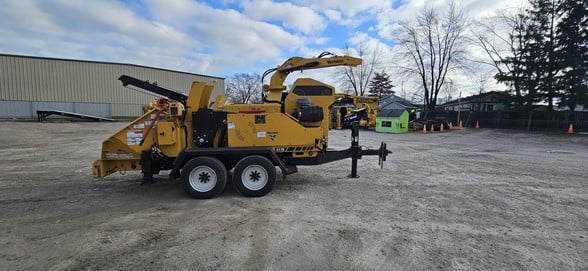

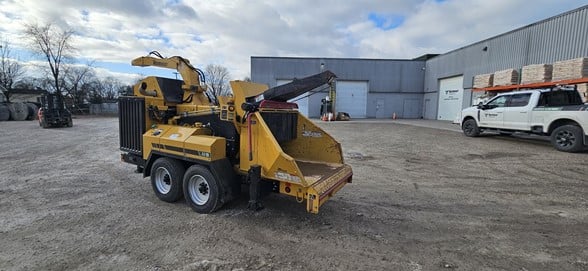

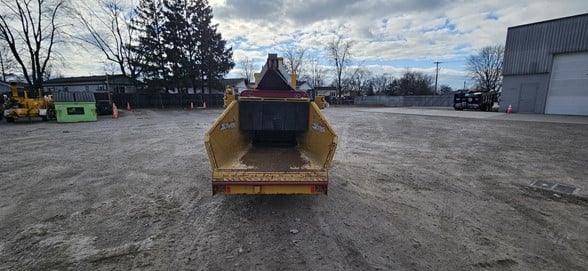

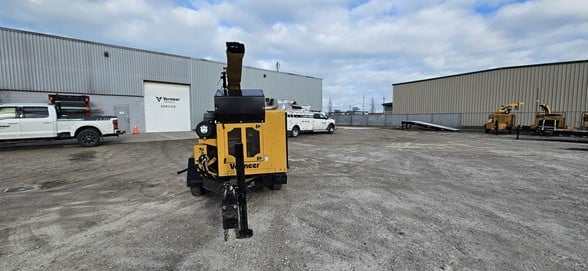

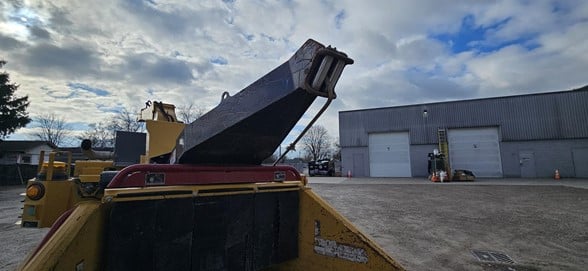

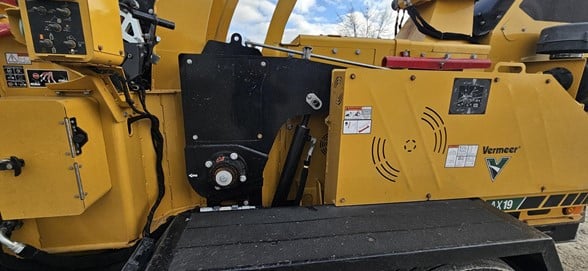

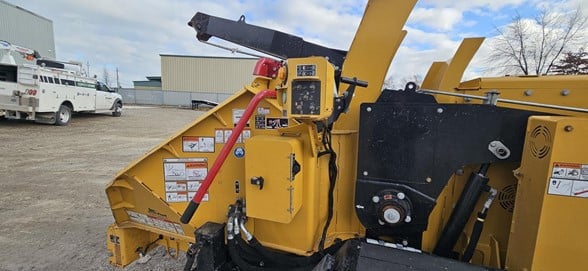

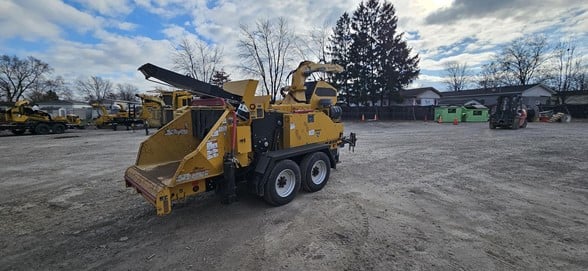

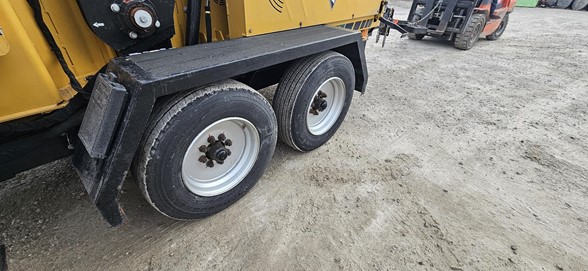

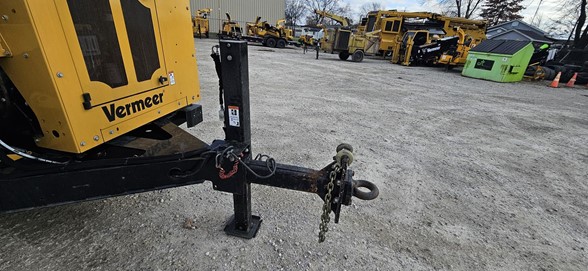

AX19 BRUSH CHIPPER Equipped with mechanical feeding capabilities and a 173-hp (123-kW) John Deere diesel engine, this unit will efficiently work in large land-clearing operations or on a rural jobsite. The AX19 features up to 12,000 lb (5443.1kg) of pull-in force with the support of the patented SmartCrush control system, allowing you to feed large-diameter logs or branchy limbs with minimal effort. With no two jobs alike, the AX19 is built to finish the challenge. Operational Four Position Feed Control Bar-Standard Bottom Feed Stop Bar-Standard Green Hold To Run Button-Standard Reset Method-Green Hold to Run Button Diameter-36 in (91.4 cm) Reduced Sensitivity-12 deg Normal Sensitivity-22 deg Actuation Force Bfsb-34 lbs (15.4 kg) Actuation Force-34 lbs (15.4 kg) Bottom Feed Stop Bar Diameter-2 in (5.1 cm) Material Thickness-11 in (27.9 cm) Positions-4: E-Stop, Forward, Neutral, Reverse Bottom Feed Stop Bar Material Thickness-11 GA Bedknife Number Of Useable Edges-4 Bedknife Size-3" x 20.25" Weight With Shaft-1160 lbs (526.2 kg) Thickness-26.1 in (66.3 cm) Fixture Method-Weld-on Number Of Paddles-12 Number Of Knives-12 Knife Size-0.625 x 5 x 10 Safety Lock Number Of Positions-4 Speed-1100 Replaceable Threaded Knife Block-Yes Number Of Boltsknife-5 Useable Edges-2 Width-.5 in (1.3 cm) Bedknife Thickness-1.3 in (3.2 cm) Bedknife Material-1018 CD Material Capacity-19 in (48.3 cm) Knife Thickness-.6 in (1.6 cm) Material-A8 Modified Chipper Steel Fender Description-Bolt-on Hitch Type-Pintle Frame Description-7.5" Z-Channel x 0.25" Thick Toolbox Description-Standard Tongue Extension-Extendable 12" Tongue Description-5" x 3" x 0.375" Tires Option One-LT285/75R16 Load Range E Axlesuspension-Tandem Torsion 7000 lb capacity Capacity Option One-14,000 (Tandem 7,000 lbs) Manufacturer Option One-Dexter Type Option One-TandemTorsion Wheels Option One-16" Trailer Light Type-LED Brake Type-Electric Feed Roller Dimension-19" dia x 28.25 length Motor Manufacturer-White RE470 Number Of Feed Roller Motors-4 Feed Roller Orientation-Horizontal Number Of Feed Rollers-2 Feed Roller Dimension Two-11" dia x 28.25 length Weight Of Feed Roller Option Two-186 lbs (84.4 kg) Feed Roller Clamp Type-Hydraulic Motor Displacement-28.4 Infeed Hopper Height-35 in (88.9 cm) Number Of Knives2-10 Feed Roller Minimum Distance To Drum-5 in (12.7 cm) Weight Of Feed Roller-350 lbs (158.8 kg) Infeed Table Length-60.5 in (153.7 cm) Infeed Throat Capacity-28.875" wide x 24" tall Feed Speed-119 ft/min Infeed Table Width-71 in (180.3 cm) Infeed Table Material Thickness-.3 in (.6 cm) Distance From Feed Table To Ground-30.3 in (77 cm) Feed Roller Clamp Load-4000 lbs (1814.4 kg) Rotation Type-Worm gear with rotational lock Rotational Lock-Self lock Chute Rotation Angle-270 deg Deflector Thickness-.1 in (.2 cm) Chute Height-108 in (274.3 cm) Side Wall Thickness-.1 in (.3 cm) Bottom Thickness-.1 in (.2 cm) Top Thickness-.2 in (.5 cm) Filtration Method-6 micron return, 100 micron suction Oil Cooler-No Auto Reverse Psi-2800 psi (193.1 bar) Directional Control-Yes Flow Control-No System Relief Pressure-3000 psi (206.8 bar) Tank Capacity-20 gal (75.7 L) Recommended Oil Type-HY POWER 68 System Type-Open Center Pump Flow At Maximum Rpm-14.8 gpm (56 L/min) Electrical Battery-950 CCA Radio Remote Control-Optional Switches-Control Panel: Ignition, throttle, Smartfeed, exhaust regeneration, and ECOIdle. Rear: Lower feed bar sensitivity, Chute controls, Manual Crush Standard Gauges-Digital Display with tachometer, hourmeter, oil pressure, water temp, battery voltage and engine error codes. Fuel and DEF gauges System Voltage-12 Display-MFD Controller-Vermeer ACS: C248 Shutdown System-High temp, low pressure, Tier 4 emissions related Dimensions- Width-79 in (200.7 cm) Height-108 in (274.3 cm) Weight Without Winch And Hydraulic Jack-11000 lbs (4989.5 kg) Weight With Winch,Hydraulic Jack And Hydraulic Chute-11400 lbs (5171 kg) Weight With Outriggers Additional-170 lbs (77.1 kg)
