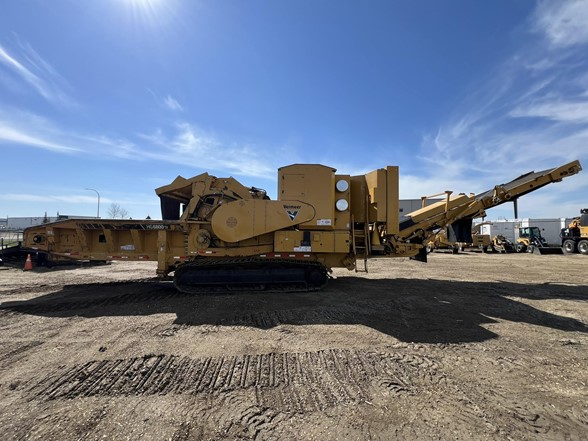

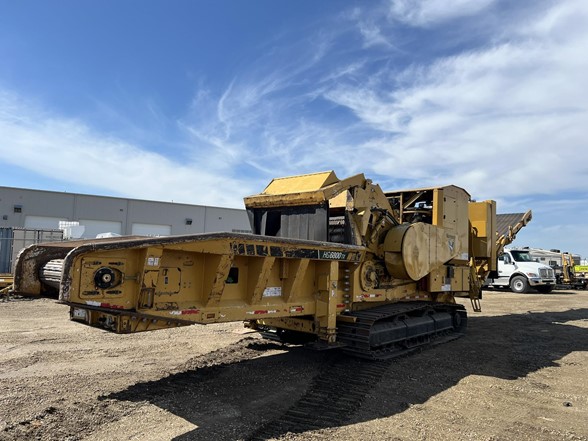

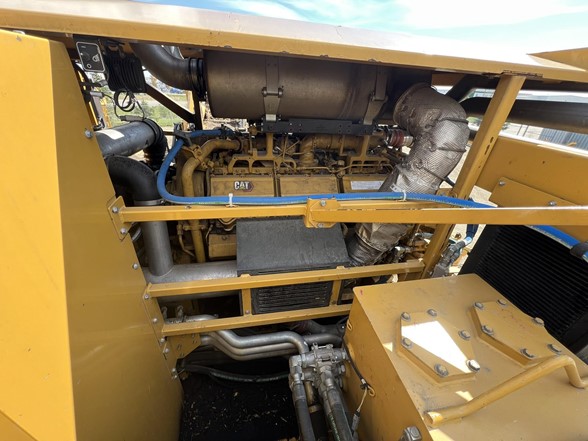

2021 Vermeer HG6800TX 3276hrs Cat C27 950hp Final Tier 4 The HG6800TX horizontal grinder offers a high-horsepower engine on a tracked machine with a compact design. Featuring 950 hp (708 kW) in a 92,000-lb (41,730.5-kg) class, and an infeed design designed specifically for feeding larger materials such as whole trees and large stumps, the new grinder is built to power through tough materials with less operator interaction. Drivetrain System relief pressure -260 psi (17.9 bar) Pump Flow at Maximum RPM--8.9 gpm (33.7 L/min) Pump Type--Fixed displacement, gear pump System Type-Open-loop Filtration Method-Spin-on, pressure filter, B6 = 1000 Recommended Oil-Vermeer VMF Gold Tank capacity-21 gal (79.5 L) Number of Coolers-1 Operational Maximum Speed-2.8 mph (4.5 km/h) Maximum Creep Speed - (Low)-1.4 mph (2.3 km/h) System Relief Pressure-3000 psi Pump Flow at Maximum RPM-25.7 gpm (97.3 L/min) Number of Idlers-20 Type of Idler-D5 excavator rollers Track Width Option One - Ground Bearing Pressure - Soft Ground -11.4 psi (78.6 kPa) Track Width Option One - Ground Bearing Pressure - Hard Ground-58.3 psi (402 kPa) Track Width - Option One-26" (66 cm) Track Length on Ground--142" (360.7 cm) Track Brake Type-Spring-applied, hydraulic-release wet disc parking brake Track Drive Pump Type-Variable displacement, axial piston Track Type-D5 double grouser Track Frame Description-Rigid frame with reinforced box section Track Drive Motor Type--Hydrostatic with planetary transmission Ground Clearance - Option Two-5.3 in (13.5 cm) Wheels - Option Two-Aluminum Tires - Option Two-445/50R22.5 LR L (super singles) Ground Clearance - Option One -5.3 in (13.5 cm) Wheels - Option One-22.5"x8.3" hub-piloted steel Tires - Option One-255/70R22.5 duals Capacity per Axle-20000 lbs (9071.8 kg) Manufacturer - Option One-Hendrickson Suspension Type-Air-ride Number of Axles-3 Trailer Light Type--12-24V LED Brake Type--Air-actuated with spring-applied parking brake Hitch Type-Fifth wheel Tongue Description-Bolt-on to infeed structure Frame Description-DT6 Fender Description-Formed steel Battery Type-AA (Qty 6) Operating Range-Up to 300' (91.4 m) Switches-Sealed membrane Operational Faults-Yes Machine Information-Yes Engine Information-Yes Display Type-LCD Gauges-none Fan Series - FWD/REV-Reversible Pump Type-Variable displacement, axial piston System Type-Open-loop, pressure compensated Motor Series-Danfoss KM38 Filtration Method-Dual in-tank return filters with suction strainer Recommended Oil-Vermeer HyPower 68 Tank capacity-100 gal (378.5 L) Number of Coolers-1 Load Height-16.3 ft (5 m) Belt Speed-877 ft/min (267.3 m/min) Drive Motor Bearings-1-15/16, 4-bolt flange Drive Motor-Fixed displacement, geroler Magnetic Drive Roller Diameter-12.8 in (32.5 cm) Standard Drive Roller Diameter-12.8 in (32.5 cm) Idler Roller Bearing-1-15/16, 4-bolt flange Idler Roller Diameter-12 in (30.5 cm) Return Roller Quantity-6 Belt Design-3 ply - 330# or straight warp single ply 330# both with V cleat Width-48 in (121.9 cm) Length-89.3 ft (27.2 m) Splice-R2-stainless steel or super splice Anvil Dimensions-6.6" x 18.2" x 81" (16.7 cm x 46.2 cm x 205.7 cm) Anvil Type-Fabricated steel with replaceable wear surfaces Liner Dimensions-.75, 1" (1.9 cm, 2.5 cm) thick Millbox Lid Liner Dimensions-Abrasion-resistant steel Screen Area-3583 sq in (23116.1 sq cm) Screen Type-Abrasion-resistant steel Screen Dimensions-1" thick Screen Weight-470 lbs (213.2 kg) Number of Screens-2 Center Retention Pin Dimensions-2" dia x 79.35" L Tip option 1-2-bolt Number of Tips-20 Number of Hammers-10 Bearing - Inner Race Diameter-6 in (15.2 cm) Bearing Type-Double row, sperical roller Drum Speed-1200 rpm Drum Skin Thickness-1.5 in (3.8 cm) Drum Cutting Width-62.4 in (158.5 cm) Drum Diameter-28 in (71.1 cm) Millbox Opening-60" W x 38" H Deflector Position-Variable Thrown Object Deflector-Standard Tip Diameter-36.4 in (92.5 cm) Feed Roller Down Pressure-Adjustable Drive Planetary-(Qty 2) 34.2:1 Number of Teeth-12 Tooth Design-Serrated bars Material Type-Fabricated steel Maximum Feed Height-50 in (127 cm) Infeed Roller Diameter-36.1 in (91.7 cm) Infeed Roller Weight-2460 lbs (1115.8 kg) Infeed Roller Width-56.3 in (143 cm) Infeed Floor Construction-Welded steel with replaceable UHMW wear plates Front Idler Roller Construction-Self-cleaning steel auger Drive Roller Construction-Welded steel Drive Type-Radial piston motor Feed Conveyor Type-Welded slat chain Flare Construction-Integrated with infeed Loading Height-6 ft (1.8 m) Feed Table Length - Option One-19 ft (5.8 m) Feed Table Width-60 in (152.4 cm) Drum Weight-6707.5 lbs (3042.5 kg) Tip types-Premium wide Millbox lid liner-Abrasion-resistant steel Radio remote type-North America, South America, Japan: R625-60; All other regions: R524-10 Depth of Cut-Adjustable: 1.125 in (2.86 cm) to 1.5 in (3.81 cm) Number of Knives-14 Knife Thickness-.625 in (1.6 cm) Useable Edges-1 Material-A8 mod chipper steel Number of Bolts/Knife-2 Replaceable Threaded Knife Block-Yes Number of Pockets-14 Shaft diameter-6.5 in (16.5 cm) Shaft Retention Type-Keyless bushing Feed opening-38-in (96.5-cm) high x 56.4-in (143.3-cm) wide Infeed roller weight with arm-4945 lbs (2243 kg) Electrical-Battery Group 8-D, 1400 CCA (Qty 2) System Protection-Fused System Voltage-24 VDC Dimensions Weight-92000 lbs (41730.5 kg) Weight Engine Option 1 with Dolly-105000 lbs (47627.2 kg) Maximum Height (Transport)-12 ft (3.7 m) Maximum Width (Transport)-10 ft (3 m) Dolly Weight-9500 lbs (4309.1 kg) Axle Weight - Engine Option 1 with Dolly-60000 lbs (27215.5 kg) Tongue Weight - Engine Option 1 with Dolly-45000 lbs (20411.7 kg) Maximum Height Transport with Dolly-12.8 in (32.5 cm) Maximum Width Transport - with Dolly-10 ft (3 m) Maximum Length (Operation)-56.5 ft (17.2 m) Maximum Length - Transport with Dolly-48.6 ft (14.8 m) Maximum Length - Transport-48.1 ft (14.7 m)
