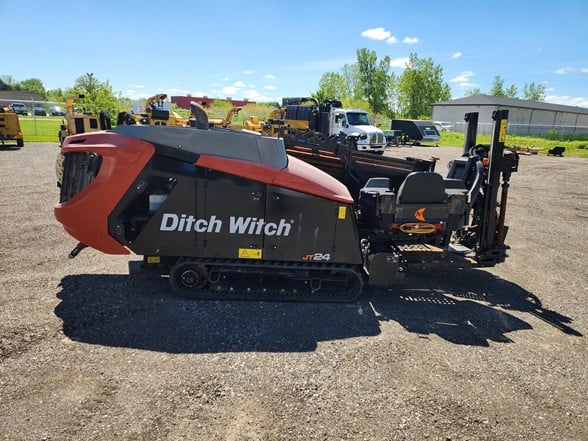

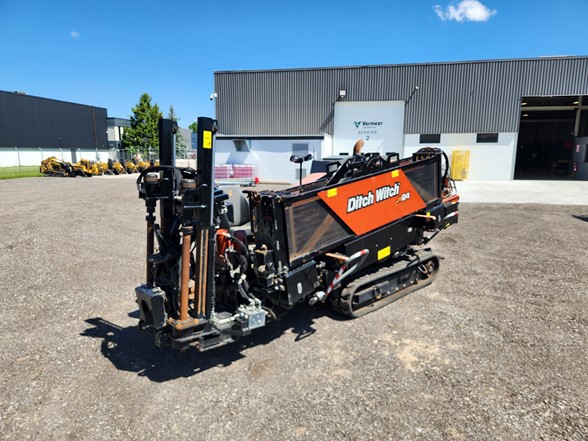

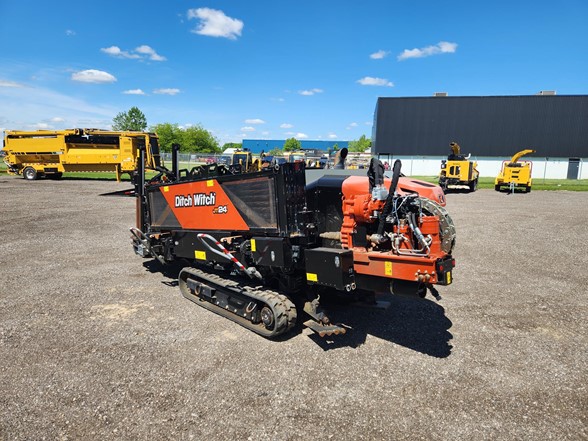

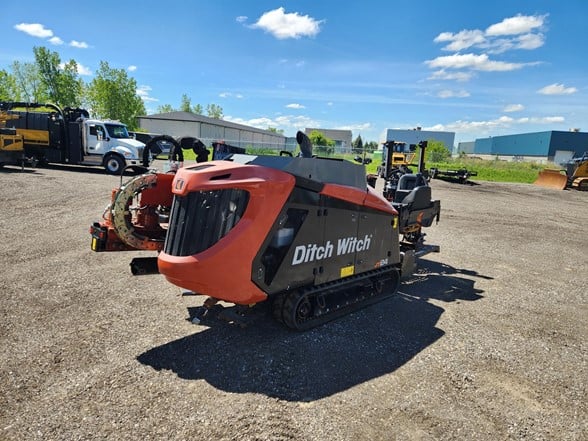

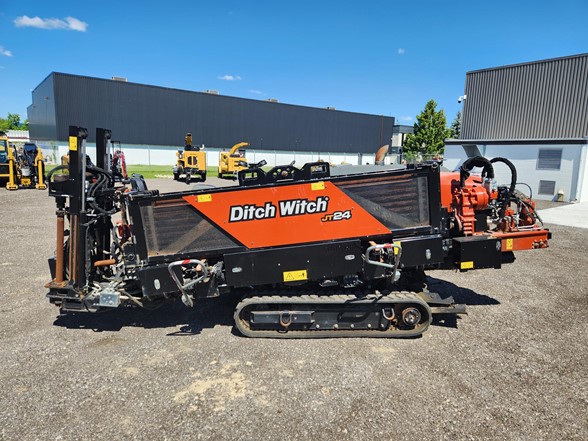

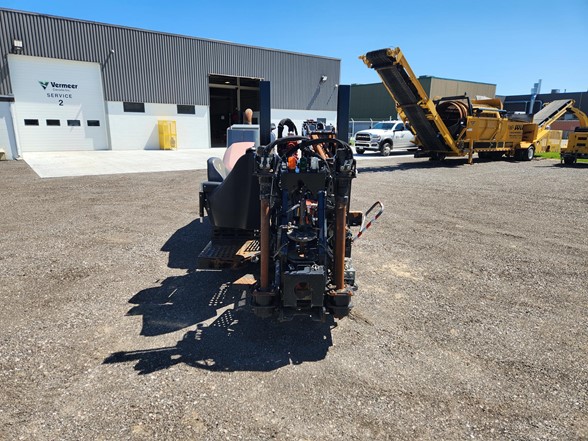

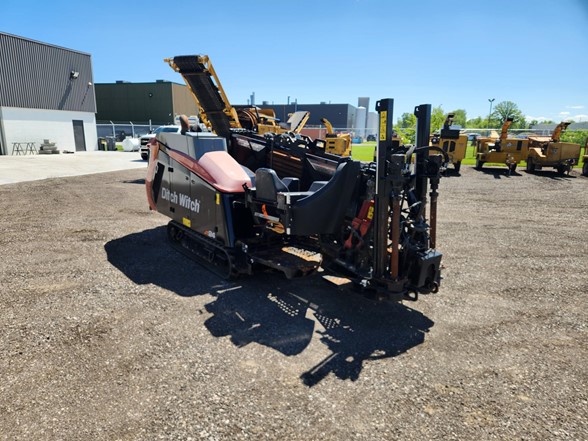

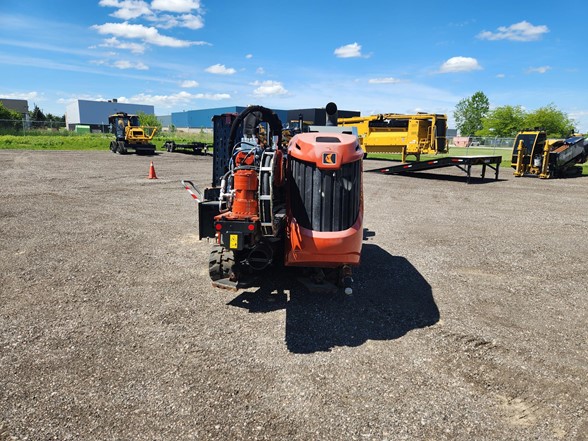

2021 Ditch Witch JT24, 431hrs The evolution of HDD continues with the Ditch Witch® JT24 directional drill, offering the biggest bang for your buck—both in power and stability. Best suited for urban and residential utility, gas and fiber jobs, it provides 3,000 ft-lbs of toque and 24,000 lbs of thrust and pullback while maintaining a small footprint. Promoting a wider frame, the JT24 can confidently traverse uneven terrain and city curbs, offering best-in-class stability. Operational Thrust Force-24,000 lb Pullback Force-24,000 lb Spindle speed, max-225 rpm Spindle torque, max-3,000 ft·lb Carriage thrust travel speed-210 fpm Carriage pullback travel speed-216 fpm Ground travel speed Forward-2.8 mph Ground travel speed Reverse-2.8 mph Weight-14,850 lb Operator sound-83 dBA Exterior sound power-101 dBA Weight per drill pipe-74 lb Weight w/drill pipe & large box (40 pipe)-3,635 lb Weight w/drill pipe & small box (28 pipe)-2,720 lb Weight of drill pipe, lined-72.5 lb Weight of lined drill pipe & large box (40 pipe)-3,555 lb Weight of lined drill pipe & small box (28 pipe)-2,675 lb Pressure, max-1,200 psi Flow, max-40 gpm Battery-SAE reserve capacity rating-110 min SAE cold crank rating @ 0°F (-18°C)-800 amps Dimensions Length-120 in Width-65.25 in Transport length-224.5 in Transport height-83 in Ground clearance-5.8 in Entry angle-18° Entry angle, tracks on ground-12° Joint diameter-2.63 in Pipe diameter-2.375 in Bend radius, min-123 ft Length One-120 in Joint diameter One-2.625 in Pipe diameter One-2.25 in Bend radius, min One-117 ft Engine Drivetrain Displacement-231.89 in3 Injection-Direct Aspiration-Turbocharged & charge air cooled Engine-Cummins® F3.8 Fuel-Diesel Cooling medium-Liquid Number of cylinders-4 Bore-4.02 in Stroke-4.53 in Gross horsepower Tier 3/Tier 4-101 hp Rated speed Tier 3/Tier 4-2,200 rpm Emissons compliance Tier 3-EPA Tier 3 Emissions compliance Tier 4-EPA Tier 4 Fuel tank-32 gal Engine lubrication oil w/filter-15.4 qt Hydraulic reservoir-18.75 gal Engine cooling system-20 qt Antifreeze tank-5 gal Diesel exhaust fluid tank-5 gal
